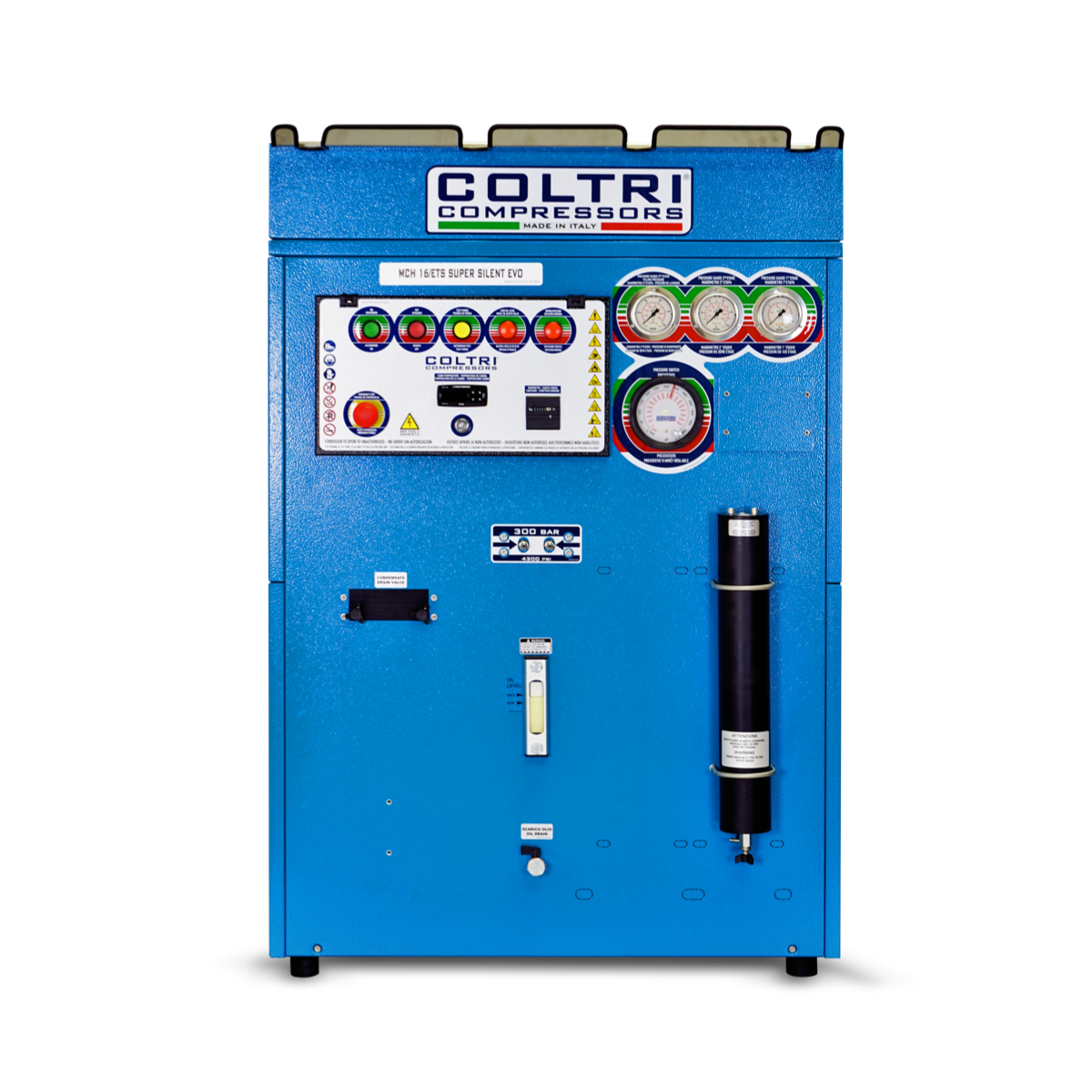

Loftpressa Super Silent EVO

Loftpressa Super Silent EVO

Uppselt
Framleiðandi
Coltri
Verð
0 kr
Útsöluverð
0 kr
Fjöldi verður að vera 1 eða fleiri

The SUPER SILENT EVO model stands out for its high level of quietness. It was designed by Coltri to meet specific needs such as ease of use, soundproofing and control systems that allow the effective monitoring of compressor operations. The standard equipment includes: two connections for high pressure hoses (from 232 to 330 bar), interstage pressure gauges, oil level and internal cab temperature control, rotation detector, three-phase electric motor, automatic condensate drain and autostop. It is available with the new pumping units MCH 13, MCH 16 and MCH 18, depending on the specific model.

Upplýsingar um týpur

Pumping group capacity

MCH 13
Three-phase Electric Motor - 235 l/m - 14,10 m³/h - 8.30 CFM FAD
MCH 16
Three-phase Electric Motor - 315 l/m - 18,90 m³/h - 11.12 CFM FAD
MCH 18
Three-phase Electric Motor - 330 l/m - 19,80 m³/h - 11.65 CFM FAD

Filling time: *

* Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%)

MCH 13
Three-phase Electric Motor - 8 min. 30 sec.
MCH 16
Three-phase Electric Motor - 6 min. 20 sec.
MCH 18
Three-phase Electric Motor - 6 min.

Operating pressure

232 - 300 - 330 bar
3365 - 4351 - 4786 PSIG

Net weight

MCH 13 - Three-phase Electric Motor - 225 kg - 496 Lbs
MCH 16 - Three-phase Electric Motor - 235 kg - 518 Lbs
MCH 18 - Three-phase Electric Motor - 235 kg - 518 Lbs

Noise level

MCH 13
Three-phase Electric Motor - 66,2 db
MCH 16
Three-phase Electric Motor - 68,8 db
MCH 18
Three-phase Electric Motor - 69,8 db
