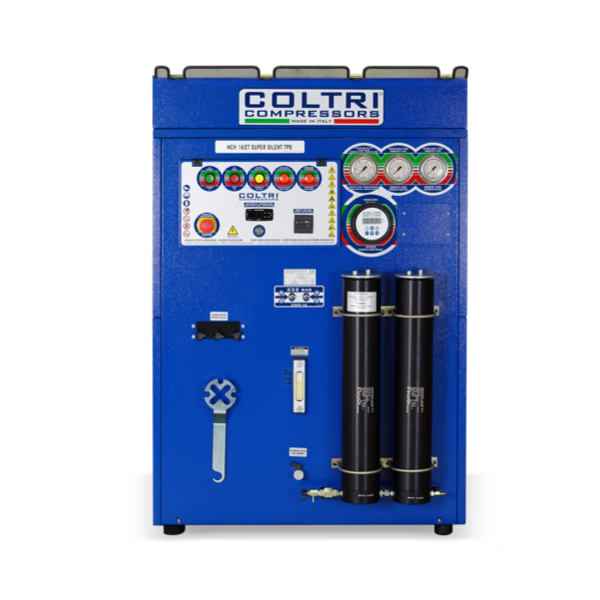

Loftpressa Super Silent TPS

0kr

Útsala Uppselt

Týpa CC MCH-13 CC MCH-16 CC MCH-18

Uppselt

The SUPER SILENT TPS model stands out for its extremely silent operation. It has been designed with a larger cooling and soundproofing system and a powerful filtering system with two Hyperfilters. Powered by a three-phase electric motor, it is equipped with four different pumping units (MCH 13, MCH 16, MCH 21 and MCH 23), all in the TPS (Tropical Plus Superdry) version and available with an exclusive control panel. For the longer life of the filters, the external dryers RF 500 and RF 1000 are available.

Upplýsingar um týpur

Pumping group capacity

MCH 13
Three-phase Electric Motor - 235 l/m - 14,10 m³/h - 8.30 CFM FAD

MCH 16
Three-phase Electric Motor - 315 l/m - 18,90 m³/h - 11.12 CFM FAD

MCH 21
Three-phase Electric Motor - 345 l/m - 20,70 m³/h - 12.18 CFM FAD

MCH 23
Three-phase Electric Motor - 380 l/m - 22,80 m³/h - 13.42 CFM FAD

Filling time: *

* Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%)

MCH 13
Three-phase Electric Motor - 8 min. 30 sec.

MCH 16
Three-phase Electric Motor - 6 min. 20 sec.

MCH 21
Three-phase Electric Motor - 5 min. 40 sec.

MCH 23
Three-phase Electric Motor - 5 min. 15 sec.

Operating pressure

232 - 300 - 330 bar

3365 - 4351 - 4786 PSIG

Net weight

MCH 13 - Three-phase Electric Motor - 212 kg - 467 Lbs

MCH 16 - Three-phase Electric Motor - 222 kg - 489 Lbs

MCH 21 - Three-phase Electric Motor - 222 kg - 489 Lbs

MCH 23 - Three-phase Electric Motor - 222 kg - 489 Lbs

Noise level

MCH 13
Three-phase Electric Motor - 66 db

MCH 16
Three-phase Electric Motor - 68 db

MCH 21
Three-phase Electric Motor - 68 db

MCH 23
Three-phase Electric Motor - 68 db

Available on request

MCH 13
Single-phase Electric Motor

MCH 16
Single-phase Electric Motor

Skoða fulla lýsingu
